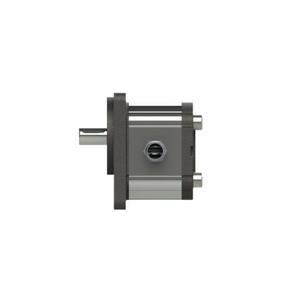

KYB - GEAR PUMP GP1-35

$0.00

Quantity

GEAR PUMP

Model	Displacement (cm³/rev.)	Max. Pressure (kg/cm²)	Rated Pressure (kg/cm²)	Speed (r.p.m)		Diameter		Weight (kg)	Dimension (mm)
Model	Displacement (cm³/rev.)	Max. Pressure (kg/cm²)	Rated Pressure (kg/cm²)	Max	Min	Inlet	Outlet	Weight (kg)	A	B
GP1-10	3.52	210	175	3000	500	PT 1/2	PT 3/8	1.4	86.5	44.5
GP1-15	5.27	210	175	3000	500	PT 1/2	PT 3/8	1.4	86.5	44.5
GP1-20	7.05	210	175	3000	500	PT 1/2	PT 3/8	1.6	94	44.5
GP1-25	8.81	210	175	3000	500	PT 1/2	PT 3/8	1.6	94	44.5
GP1-30	10.56	140	125	3000	500	PT 3/4	PT 1/2	1.7	94	44.5
GP1-35	12.31	140	125	3000	500	PT 3/4	PT 1/2	1.7	94	44.5
